SIMPLIS Parts

Up Counter

The Up Counter models a generic up counter with between 2 and 32 output bits.

On each clock edge, the D0 ... Dn outputs can increase one count or hold the last count, depending on the EN pin.
The clock-edge trigger can be set with the Trigger Condition parameter to be either rising edge (0_TO_1) or falling edge (1_TO_0).
The counter may also be reset to a value with the RST pin. When the RST pin goes active, the counter changes to the value specified by the Reset To parameter.
The Reset Type parameter controls whether the reset event is asynchronous or synchronous to the CLK edge.

For a counter which counts down, see Down Counter. For a counter that counts up or down, see Up/Down Counter.

In this Topic ShowHide

Editing the Up Counter
Truth Table
Examples
Waveforms
Subcircuit Parameters

Model Name:	Up Counter
Simulator:		This device is compatible with the SIMPLIS simulator.
Parts Selector Menu Location:	Digital Functions \| Counters
Symbol Library:	None - the symbol is automatically generated when placed or edited.
Model File:	None - the device model is generated before simulation.
Subcircuit Name:	SIMPLIS_DIGI1_D_UP_COUNTER_N: Without Ground Reference SIMPLIS_DIGI1_D_UP_COUNTER_Y: With Ground Reference
Symbols:
Multiple Selections:	Only one device at a time can be edited.

Editing the Up Counter

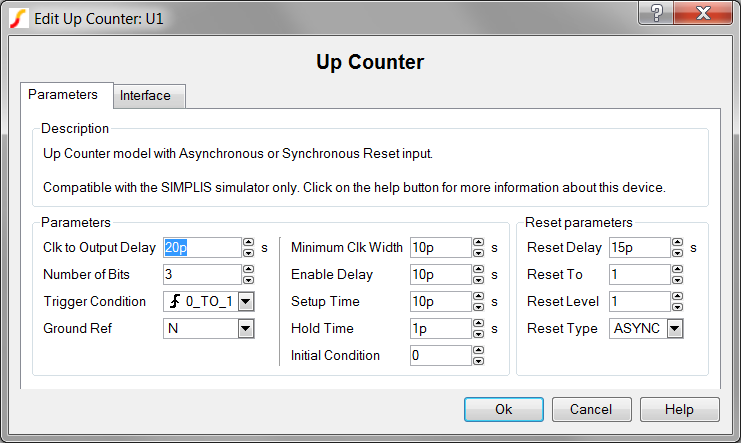

To configure the up counter, follow these steps:

Double click the symbol on the schematic to open the editing dialog to the Parameters tab.
Make the appropriate changes to the fields described in the table below the image.

Label

Parameter Description

Clock to Output Delay

Delay from the triggering clock event until the outputs change

Number of Bits

Number of output bits for the counter

Trigger Condition

Determines the triggering condition of the counter clock pin:

0_TO_1 for rising edge triggered
1_TO_0 for falling edge triggered

Ground Ref

Determines whether or not a device has a ground reference pin.

Any digital component that has an input or output pin connected to an analog circuit node must have its Ground Ref pin connected to an analog node. This is usually ground on the schematic. For more information on the use of Ground Ref for digital components, see When is Ground Ref Required?

Minimum Clock Width

Minimum valid clock width. Clock widths less than this parameter will not trigger the counter.

Enable Delay

Delay from when the enable pin goes active until the clock is enabled and the counter starts counting

Setup Time

Minimum time before the triggering clock event that the input signals must remain steady so that a valid change in each input state is recognized.

Hold Time

Minimum time after the triggering clock event that the input signals must remain steady so that a valid change in each input state is recognized.

Initial Condition

Initial condition of the counter output in decimal

Reset Delay

Delay from when the RST pin goes active until the counter output is reset

Reset To

Determines the value of the counter output when the RST pin goes active. To reset to 0, assign a assign value of -1 or 0.

Reset Level

Determines the Reset level of counter RST input pin:

1 means active high
0 means active low

Reset Type

Determines whether or not Reset events are synchronized with a clock event

Set Type	Set Behavior
SYNC	Set events are synchronized to the clock edge defined by the Trigger Condition parameter.
ASYNC	Set events are asynchronous to the clock edge.

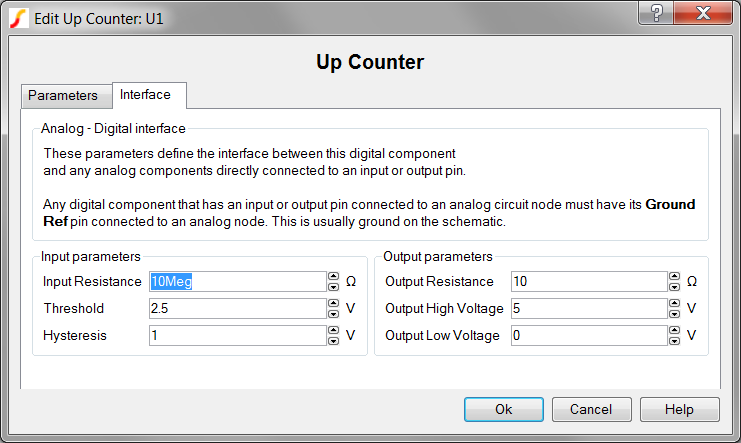

To define the parameters for the interface between this digital component and each analog component connected directly to an input or output pin, follow these steps from the Edit Up Counter dialog box:

Click on the Interface tab.
Make the appropriate changes to the fields described in the table below the image.

Label

Parameter Description

Input Resistance

Input resistance of each input pin

Threshold

Hysteresis

The Threshold (T) and Hysteresis (H) of the Schmitt trigger input buffer on each Counter input. To determine the low-to-high threshold (TH) and the high-to-low threshold (TL), substitute Threshold (T) and Hysteresis (H) in each of the following formulas :

Input Logic Transition	Actual Threshold
0 ➞ 1	TH = Threshold + 0.5 * Hysteresis
1 ➞ 0	TL = Threshold - 0.5 * Hysteresis

Output Resistance

Output resistance of the counter output pins

Output High Voltage

Output high voltage for the counter output pins

Output Low Voltage

Output low voltage for the counter output pins

Truth Table

The following truth table assumes a Trigger Condition=0_TO_1 which represents a rising edge clocked Counter.

Inputs			Outputs	Action
EN	RST	CLK	D0..Dn	Action
1	0		Count + 1	Count up
0	0		Last count	Retain last count
0	1	0 or 1	Reset To parameter value	Reset the counter to the Reset To parameter value

Examples

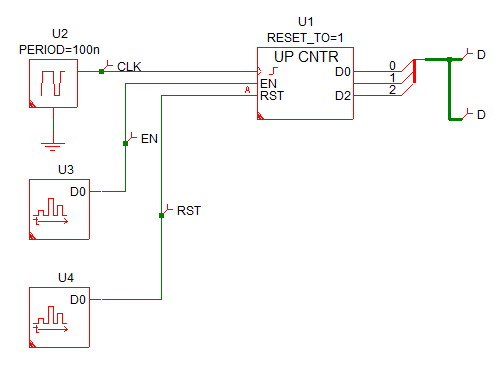

The test circuit used to generate the waveform examples in the next section can be downloaded here: simplis_028_upcounter_example.sxsch.

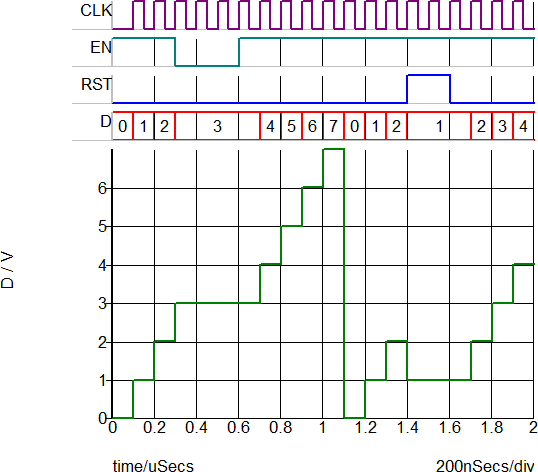

Waveforms

Subcircuit Parameters

Because this up-counter model is generated by a template script when the simulation is executed, a fixed model cannot be inserted into a netlist. The template script for this device is simplis_make_counter_model.sxscr, which you, as a licensed user, can download in a zip archive of all built-in scripts.

To download this zip file, follow these steps:

Note: You will be prompted to log in with the user name and password given to you when you registered.

Click here to go to the product-installation page on the SIMetrix website.
Click Download Links in the first paragraph of the product-installation web page.
Scroll down to the Built-in Scripts section.
Right click on Download and select Save target as..., and then navigate to a location on your computer to save the zip file.
